Equipment Skates & Machine Dollies

Steerable ST Series

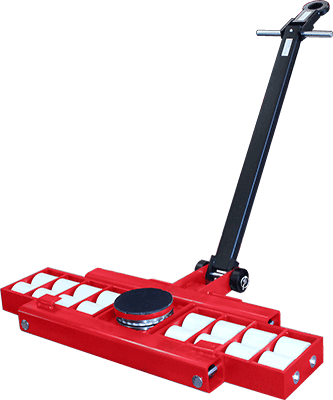

ST series steerable equipment skates and machine dollies provide steering capability while moving large industrial machines & other heavy equipment loads.  ST series steerable equipment skates feature a 360 degree swivel pad that sits directly on top of a high-strength, high-quality thrust bearing.  This design allows the machine dollies to rotate and turn under the heavy load being moved.  The rugged heavy duty handle and eye hook facilitate the heavy load being pushed or pulled by a power source such as a forklift.  The ST series steerable equipment skates can be used as a stand-alone unit or in conjunction with the FT series fixed travel machine dollies to make a 3-point contact system

 ST-4 equipment skates

ST-4 • $550
Capacity: 4 tons
Width: 10.5" •Depth: 9.25"
Height: 4.25" • Handle: 36"
Rollers: 4 SD • Pad: 6.5"
Weight: 40 lbs.

 ST-6 machine dollies

ST-6 • $700
Capacity: 6 tons
Width:10.5" • Depth: 9.25"
Height: 4.25" • Handle 36"
Rollers: 4 HD • Pad: 6.5"
Weight: 40 lbs.

 ST-8 equipment skates

ST-8 • $1200
Capacity: 8 tons

Width:23.5" • Depth: 19.5"
Height: 4.25" • Handle 45"
Rollers: 8 SD • Pad: 6.5"
Weight: 90 lbs.

 ST-12 machine dollies

ST-12 • $1450
Capacity: 12 tons

Width:23.5" • Depth: 19.5"
Height: 4.25" • Handle 45"
Rollers: 8 HD • Pad: 6.5"
Weight: 90 lbs.

 ST-18 equipment skates

ST-18 • $2160
Capacity: 18 tons

Width:33" • Depth: 22.5"
Height: 4.25" • Handle 45"
Rollers: 12 HD • Pad: 6.5"
Weight: 150 lbs.

 ST-24 machine dollies

ST-24 • $2725
Capacity: 24 tons

Width: 41" • Depth: 24.5"
Height: 4.25" • Handle 45"
Rollers: 16 HD • Pad: 6.5"
Weight: 190 lbs.

 ST-32 equipment skates

ST-32 • $3285
Capacity: 32 tons

Width: 41" • Depth: 24.5"
Height: 4.25" • Handle 45"
Rollers: 24 HD • Pad: 6.5"
Weight: 225 lbs.

ST Series Machine Dollies Design Features

 ST series machine dollies swivel pad view

360 degree swivel pad

ST steerable equipment skates feature a 360 degree swivel pad mounted on top of a high-strength thrust bearing.  This facilitates the machine dollies being able to easily rotate and turn under the load resting on top of the friction pad.  This allows the load to be maneuvered in either a pushing or pulling fashion for excellent heavy load control.

 ST series equipment skates heavy duty cassette strut design view

Heavy duty strut design

ST steerable equipment skates are built for rugged, heavy duty, sustained use over time.  Individual thick steel struts are placed between each roller so that each roller is sufficiently supported.  This design prevents warping of the axle and/or of the machine dollies themselves and is a vital aspect of TechimpexUSA's unmatched, industry-leading 10-year warranty.

 ST series machine dollies low profile rear height view

Low profile, low clearance design

Like all TechimpexUSA equipment skates and machine dollies, the ST steerable series features the same low profile design that makes them so effective for moving heavy loads and machinery.  The 4.25" low clearance height ensures that large, heavy loads only have to be lifted a few inches in order for the equipment skates to be placed under the heavy load.

 view of heavy duty handle and eye hook for ST equipment skates

Rugged tow handle and eye hook

TechimpexUSA ST steerable machine dollies feature a tough, heavy duty reinforced tow handle and eye hook.  This makes connecting the heavy load being moved to a forklift or some other power source a breeze.  The bar stock pull handle also makes positioning and moving the equipment skates by hand much easier and effective.
